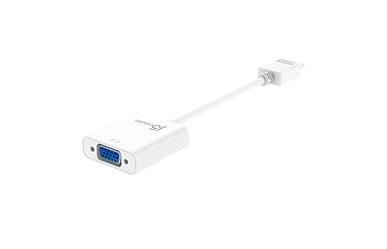

The j5create’s HDMI to VGA adapter JDA213 allows you to connect the HDMI output from your laptop, Ultra book, Desktop, Tablet, Blue ray DVD, Digital set-top box, player, Digital camera , Video camera or gamming console equipment to the VGA input of a monitor or projector by converting the HDMI video signal from the output device into a VGA output and separate 2-channel analog audio. The adapter Supports resolutions including high definition 1080p, up to 1920x1200, which eliminates the expense of upgrading a VGA display for the sake of compatibility. The Adapter can also increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace. This adapter has a high quality, compact design for long term durability and a minimal footprint.
Features
* Easy to use cable
* No software required
* No power adapter required
* Easily make your new HDMI equipment compatible with a VGA display
* Supports PC resolutions up to 1920x1200 @60Hz (WUXGA) and HDTV
resolutions up to 1080p @60Hz
* 2-channel analog audio output
* Reserved Micro USB B Type power input port, if the lack of HDMI output
device can be powered separately
* HDMI Receiver compliant with HDMI 1.4 specification
* VGA output is compliant with VESA VSIS v1r2 specification
Specifications
|
Interface |
|
VGA Output |
VGA (15 pin; High Density D-Sub) Female |
|
Audio Output |
3.5 mm Mini-Jack (3 Position) Female |
| HDMI Input |
HDMI (19 pin) Male |
| Power |
USB Micro-B (5 pin) Female 5V |
|
Hardware |
|
Converter Type |
Format Converter |
| Audio |
Yes |
|
Performance |
|
Maximum Analog Resolutions |
1920x1200 |
|
Wide Screen Supported |
Yes |
|
Audio Specifications |
2-Channel Stereo |
|
Physical Specifications |
|
Housing Material |
Plastic |
|
Dimensions |
Main body:
1.6 (W) x 1.8(H) x 0.6(D) inch
40 (W) x 45(H) x 14(D) mm
Cable length: 4 /100 inch / mm |
|
Weight |
Approximately 54 g |
Environments
| Device: |
| HDMI devices including, but not limited to: |
| * Desktop, Laptop, Ultrabook(PCs and Macs) |
| * DVD players and Blu-ray players |
| * Smart TV Box |
| * Digital camera |
| * Gamming consoles (PS3 and Xbox) |
| VGA display devices including, but not limited to: |
| * Projector |
| * Display monitor |
| * TV |
| Audio devices including, but not limited to: (Option) |
| * Amplifier speaker |
| * Home Theater |
Package Contents
| * j5create HDMI to VGA adapter JDA213 |
