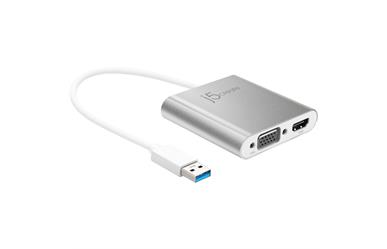

The j5create USB 3.0 Multi-Monitor Adapter acts as an external video card for your MAC or PC. It allows you to add two additional monitors/displays through your USB 3.0 port. No need to open up the computer to add an expensive video card, with the USB 3.0 Multi-Monitor Adapter you simply load the drivers, plug in the adapter to the USB port, then plug in the VGA or HDMI monitor cable into the adapter and you are ready. The j5create USB 3.0 Multi-Monitor Adapter supports three viewing modes. Primary mode, allows you to have individual applications open on each monitor, vastly improving productivity. Extended mode allows you to extend your desktop across multiple displays, great for spreadsheets. Mirroring mode is used to clone one screen onto another, ideal for presentations. With "Plug & Play" functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.
Features
* Easily add an additional display through a USB3.0 and VGA/HDMI connection.
* Video playback performs at 1080P HD with a resolution of up to 2048x1152.
* Add an additional monitor without adding an expensive, internal video card, avoiding
complicated installation
* Hot swappable USB enables you to add or remove monitors without rebooting your system
* Move and view your large spreadsheets across two screens without overlapping windows
* Multitask with larger landscape/desktop space
* Ideal for viewing multiple windows at the same time
* Great for multitasking in a wide variety of applications including: Phone centers,
Stock Markets, Hospitals, Graphic Design, Editing, Accounting, Etc.
* A must have for surfing the web and working on your email/Facebook/twitter accounts all
at the same time.
Specifications
|
Interface |
|
Host Interface |
USB 3.0 Male Type-A Connector |
|
Video Interface |
1xHDMI Female Connector
1x VGA-DB 15 pin Female Connector |
|
Max Resolution |
2048 x 1152 @ 60Hz |
|
Power |
|
Power Mode |
Bus-powered |
|
Power Consumption |
?350mA |
|
Physical Specifications |
|
Housing Material |
Aluminum |
|
Dimensions |
Main body: 68(W)x 61(H)x15(D) mm
Cable length: 200 mm |
|
Weight |
Approximately 83 g |
System Requirements
| - Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) Compatible |
| - Mac OS X 10.8 or later |
| - Available USB 3.1/3.0/2.0 port (USB 3.1/3.0 recommended) |
- Office applications / Web
CPU: Intel Core i3 Dual Core 2.8GHz
RAM: 2GB memory or higher |
- One 2K (2048*1152@60Hz) Full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4GB memory or higher |
- Two 2K (2048*1152@60Hz) Full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8GB memory or higher
Graphics card: Intel HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher
|
|
Note for Video Player:
Windows 8.1 / 8 / 7 user: "Windows Media Player" is recommended for video playback
Windows 10 user: "Movies & TV" is recommended for video playback |
|
Note:
To ensure that your device is equipped with the most current driver, please visit our website at www.j5create.com and install the latest driver for this model.
|
Resolutions and Color Depth
|
Aspect Ratio |
Resolution |
Color Depth |
|
Wide Screen Display |
|
16:9 |
2048 x 1152 |
32 bits |
|
16:10 |
1920 x 1200 |
32 bits |
|
16:9 |
1920 x 1080 |
32 bits |
|
16:10 |
1680 x 1050 |
32 bits |
|
16:9 |
1600 x 900 |
32 bits |
|
16:10 |
1440 x 900 |
32 bits |
|
16:9 |
1366 x 768 |
32 bits |
|
16:9 |
1360 x 768 |
32 bits |
|
16:10 |
1280 x 800 |
32 bits |
|
15:9 |
1280 x 768 |
32 bits |
|
16:9 |
1280 x 720 |
32 bits |
|
Standard Display |
|
4:3 |
1600 x 1200 |
32 bits |
|
4:3 |
1400 x 1050 |
32 bits |
|
5:4 |
1280 x 1024 |
32 bits |
|
4:3 |
1280 x 960 |
32 bits |
|
4:3 |
1152 x 864 |
32 bits |
|
4:3 |
1024 x 768 |
32 bits |
|
4:3 |
800 x 600 |
32 bits |
|
4:3 |
640 x 480 |
32 bits | |
Package Contents
| * USB 3.0 to Dual VGA HDMI Multi-Monitor Adapter JUA360 |
| * Quick Installation Guide |
| |
