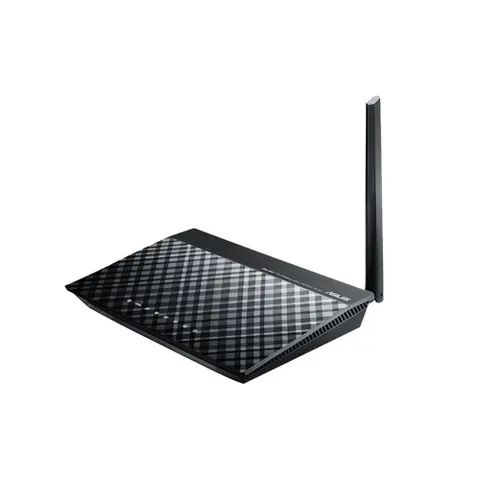

Wireless-N150 ADSL Modem Router 1xRJ11 4xRJ45 3 Year Warranty

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6

N150 instant easy access; 150Mbps

802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 150Mbps

ANSI T1.413i2
ITU G.922.1(G.dmt).ITU G.922.2 (G.lite)
ITU G.922.3 ADSL2(G.dmt.bis)
ITU G.922.4(G.lite.bis)
ITU G.922.5(G.dmt.bisplus)
ADSL/ADSL2/ADSL2+ multimode AnnexA,AnnexB compliant
ADSL 2/2+ 24Mbps downstream
Support Annex A/B/I/J/L/M

Detachable 2 dBi antenna x 1

Power, ADSL, Internet, WLAN, LAN x 4

WPS Button, Reset Button, Power Button, Wireless on/off Button

1 x RJ11 for ADSL
4 x RJ45 10/100 BaseT for LAN

2.4GHz

Multiple SSIDs, Parental Control

13 Europe (ETSI)

32MB DDR / 8MB Flash

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support

Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function

ADSL Setting Wizards
Device Discovery
Firmware Restoration

IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through

AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.5 A

CE, C-Tick

123 x 190 x 35 mm (WxDxH)

312 g (Device Only)

Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)

Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux

DSL-N10_C1 Wireless ADSL Modem Router
Power Adapter
Quick Start Guide
Support CD (user manual, Utilities)
RJ45 cable, RJ11 cable
Splitter (varies with regions)

Three Year Manufacturer Warranty
