Wireless-N300 VDSL/ADSL Gigabit Router 1xRJ11 1x RJ45 4xRJ45 2xUSB 3y Warranty

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6

N300 complete networking; 300 Mbps

802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps

VDSL2/ADSL2+/ADSL2/ADSL multimode
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T G.993.2
ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
ITU-T G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
ITU-T G.993.2 Compliant, Annex A, B
ITU-T G.993.5 (Vectoring)
ATM and PTM (dual-priority)
G.998.4 (G.inp)

Graphic network map (DSL-ASUSWRT)
Parental Control
Traffic Monitor
Download Master
3G/4G support
Dual WAN (Fail over)
IPTV support (ADSL/VDSL support)
PPTP VPN server
DSL Feedback mechanism

Internal dBi antenna x 2

Power, Internet, WLAN, LAN x 0, xDSL, 2.4 GHz Wi-Fi, USB x 1

WPS Button, Reset Button, Power Button, Wireless on/off Button

4 x RJ45 10/100/Gigabits BaseT for LAN
1 x RJ45 10/100/Gigabits BaseT for WAN
1 x RJ11 for xDSL

USB 2.0 x 2

Printer Server
FTP Server
Download Master
3G/4G sharing

2.4GHz

13 Europe (ETSI)

128MB DDR3
128MB NAND flash

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPS support

Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function

- Download master:
.Support BT, NZB, HTTP, ED2K
.Support encryption, DHT, PEX and magnet link
.Upload and download bandwidth control
.Download scheduling

- Media server:
.Image: JPEG
.Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
.Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

- Printer Server:
.Multifunctional printer support(Windows only)
.LPR protocol support

IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server

AC Input : 110 ~240 V(50~60HZ)
DC Output : 19 V/1.75 A

CE

147 x 205 x 66 ~ mm (WxDxH)

370 g (Device Only)

Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® XP
Mac OS X
Linux

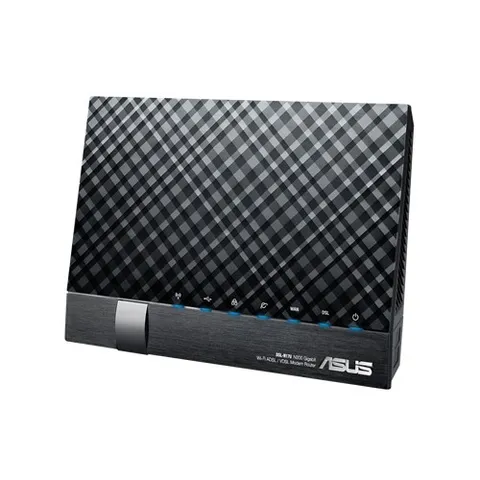

DSL-N17U Wireless-N300 VDSL/ADSL/Fiber Gigabit Modem Router
RJ-45 cable
RJ-11 cable
Support CD(User manual and utility)
Power adapter
Warranty card
Quick start guide
Splitter (varies with regions)
