- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv6
- Product Segment
N600 advanced performance; 300+300Mbps
- Wi-Fi Data Rate
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
- xDSL Data Rate
ANSI T1.413i2
ITU G.922.1(G.dmt).ITU G.922.2 (G.lite)
ITU G.922.3 ADSL2(G.dmt.bis)
ITU G.922.4(G.lite.bis)
ITU G.922.5(G.dmt.bisplus)
ADSL/ADSL2/ADSL2+ multimode AnnexA,AnnexB compliant
ADSL 2/2+ 24Mbps downstream
Support Annex A/B/I/J/L/M
- Antenna
External dBi antenna x 3
- LED Indicator
Power, ADSL, Internet, LAN x 4, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
- Button
WPS Button, Reset Button, Power Switch
- Ports
1 x RJ11 for ADSL
4 x RJ45 10/100/Gigabits BaseT for LAN
1 x RJ45 10/100/Gigabits BaseT for WAN
- USB Ports
USB 2.0 x 2
- USB Applications
Printer Server
FTP Server
Download Master
- Operating Frequency
2.4GHz
5GHz
- Router Special Features
AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
- Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/2 A
- Certificates
CE, C-Tick
- Dimensions
207 x 148.8 x 35.5 mm (WxDxH)
- Weight
500 g (Device Only)
- OS Support
Windows® 8
Windows® 7
Windows® Vista
Windows® XP
Mac OS X
- Package Content

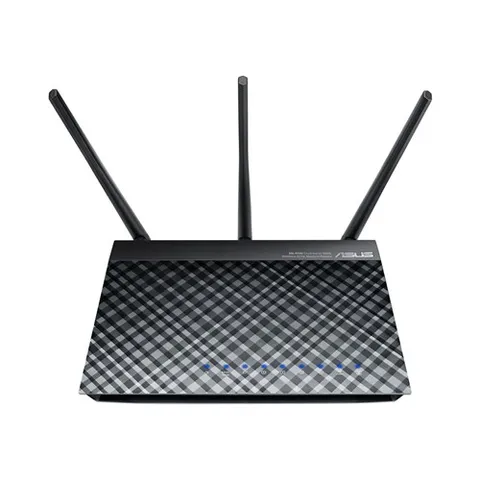

DSL-N55U Dual-band Wireless- N600 Gigabit ADSL Modem Router
Network cable (RJ-45 cable)
Phone cable (RJ-11 cable)
Support CD (user manual and utility software)*
Power adapter
Quick start guide
Splitter (varies with regions)
